SER65071 - 230V transmitter with neutral
Product Description
The 230V transmitter with neutral is a mains-powered micro-module designed to convert local inputs (switches, push-buttons, detector, pilot wire…) into Bluetooth Mesh commands within the LinkIO ecosystem.
Installed behind a wall switch and wired in L + N, it lets you control a variety of equipment and use cases, configurable from the mobile App: On/Off, dimming, shutter control (blinds/awnings…), PV/GV ventilation, chime, as well as pilot-wire control/input for heating use cases.
Thanks to its mains power supply, it offers permanent availability (no battery management) and integrates into the Bluetooth Mesh network (provisioning / unprovisioning, configuration mode, etc.). It also supports the range’s cross-cutting functions such as LED status indication, the Reset button, product life indication, updates via the app, and safety functions (e.g. overheat alert, power outage alert). It can finally be used as a scenario trigger and as part of the Vigilant Home, depending on the chosen configuration.
Item code : SER65071
Internal ref. : REF02
Technical Specifications
Power supply: 230V AC ~50Hz
Connectivity: Bluetooth Mesh
Dimensions: 42x35x10mm
Operating temperature: 10°C - 60°C
Mounting: Fits inside a recessed box (with mounting sleeve)
Supported Functions
Control
Lighting and socket management : Dimmer push-button · Motion detection · On/Off switch
Ventilation control : Ventilation control · Ventilation control
Automation
Vigilant Home · Scenario management
Security
Overheat alert · Power outage alert
Standard range functions
Product interfaces · Power supplies · Product health indication · User account · Software updates · Bluetooth Mesh connectivity functions
Electrical Installation

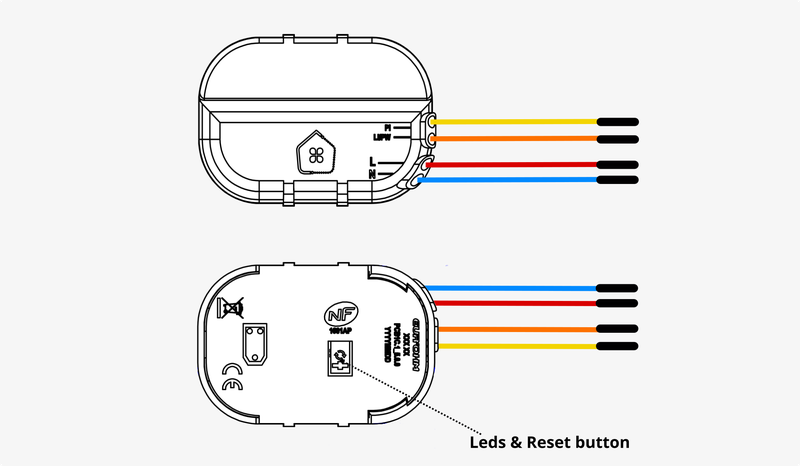

Interfaces

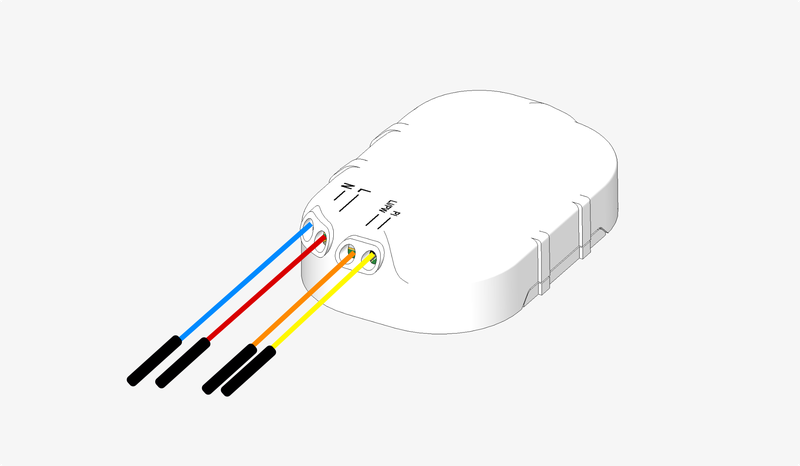

Mains connection
Warning
!! ELECTROCUTION HAZARD !! Before wiring this product, carefully read this warning: Electrocution Hazard

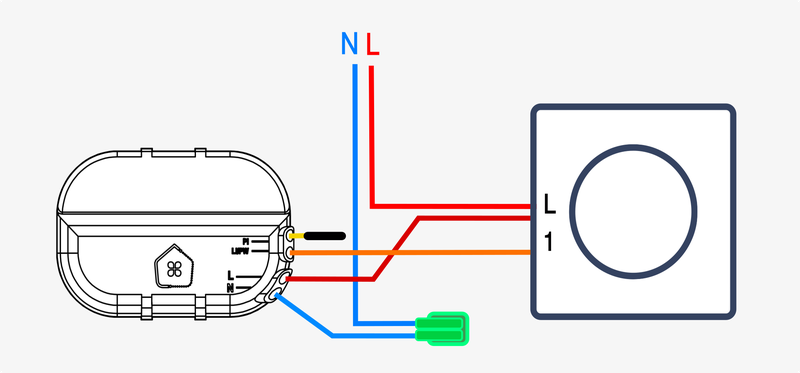

Input wiring 1-button/rocker switch
If the selected switch is a two-way switch, you can choose an assignment for the input from the following list:
If the switch is a push button, you can choose an assignment for the input from the following list:

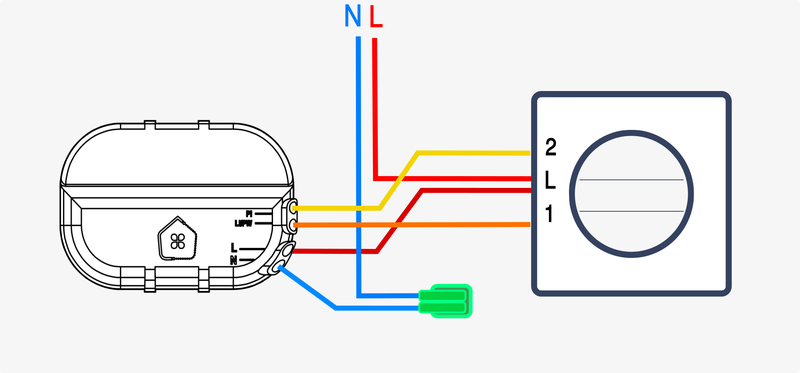

Input wiring 2-button/rocker switch
If the selected switch is a two-way switch, you can choose an assignment for the input from the following list:
- Lighting and socket management - On/Off switch (1 button required)
- Ventilation control - Ventilation control (1 button required)
- Ventilation control - Ventilation control (2 buttons required)
If the switch is a push button, you can choose an assignment for the input from the following list:
- Lighting and socket management - On/Off switch (1 button required)
- Lighting and socket management - Dimmer push-button (1 button required)
Doorbell and chime - Doorbell and chime (1 button required)
Shutter management - Shutter switches (2 buttons required)
Scenario management - Scenario trigger button (1 button required)
Input wiring 3-button switch
If the selected switch is a two-way switch, you can choose an assignment for the input from the following list:
- Shutter management - Shutter switches (2 buttons required)
If the switch is a push button, you can choose an assignment for the input from the following list:
- Shutter management - Shutter switches (2 buttons required)

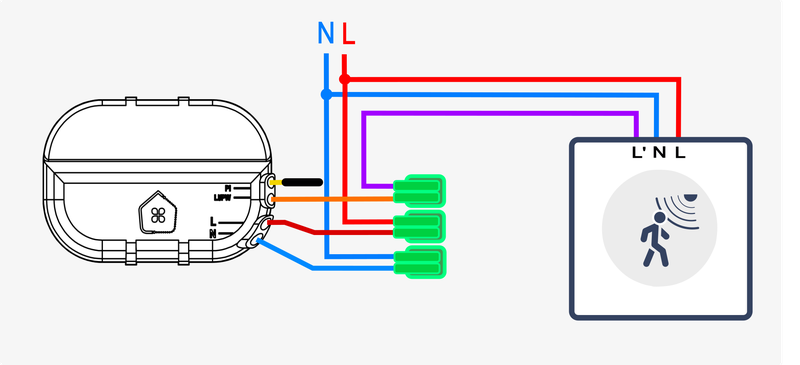

Input wiring Motion detector
Automatic input assignment :

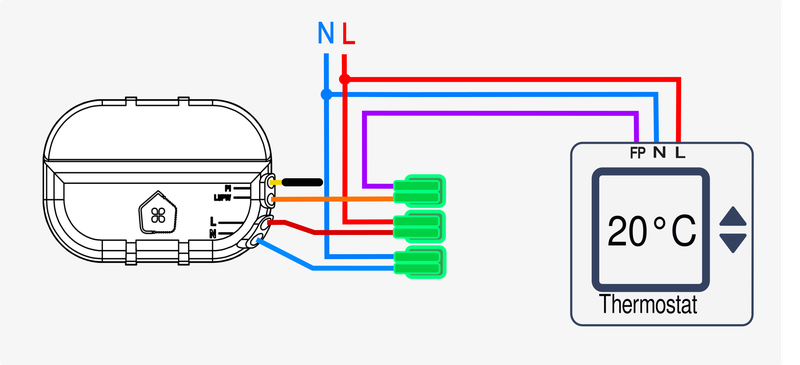

Input wiring Pilot wire input
Automatic input assignment :
Functional Setup
Once the product is electrically installed, you can power it on.
You can then start the functional setup from the mobile App.
